Use signed-in bots when:

• A meeting requires Google authentication.
• You want bots to appear with a Google account's identity (profile photo + display name).

Some limitations for signed-in Google Meet bots are:

• The bot's display name and profile photo are not configurable.

Integration guide

Step 1. Create a new, dedicated, paid Google Workspace for your bots to login with.

Prepare the domain and accounts

1. Use the dedicated Workspace's primary domain for bot accounts. A subdomain such as meet-bots.example.com can be the primary domain of a separate Workspace; a secondary domain or alias in your existing Workspace does not qualify.

2. Keep a separate super-administrator account for managing the Workspace and create a standard, non-admin user for the bot. Do not use the initial Workspace administrator as the bot account.

   🚧

   The Google account the bot uses to login must not be an admin in the Google Workspace. If the bot tries to login with an admin account, the login flow will fail.

3. Sign in to the bot account before enabling SSO. Complete any Google setup or verification prompts and confirm access to Google Meet.



4. Set the account's name and profile picture. Google Meet uses these for the signed-in bot; the account name overrides Create Bot's bot_name.

Generate a matching private key and certificate

Run the following command in a new directory so that you do not overwrite an existing key pair:

openssl req -x509 -newkey rsa:2048 \
  -keyout google-meet-sso-key.pem \
  -out google-meet-sso-cert.pem \
  -sha256 -days 3650 -nodes

Recall uses google-meet-sso-key.pem to sign SAML responses; Google uses google-meet-sso-cert.pem to verify them.

Save both files securely for as you will need it later in this guide. You can also record which Workspace and Recall Logins use them for later reference if needed. Never include the private key in source control, support messages, or screenshots.

Configure Google's Legacy SSO profile

The administrator needs the Security Settings privilege.

1. Open Google Admin → Security → Authentication → SSO with third party IdP.

2. Click Add SAML profile.



3. At the bottom of the IdP details page, click Go to legacy SSO profile settings.

4. Enable SSO with third-party identity provider.

5. Enter these redirect URLs:

   Setting	Value
   Sign-in page URL	https://RECALL_REGION.recall.ai/api/v1/bot/gmeet-sign-in
   Sign-out page URL	https://RECALL_REGION.recall.ai/api/v1/bot/gmeet-sign-out

6. Upload google-meet-sso-cert.pem as the verification certificate.

7. Enable Use a domain-specific issuer and save. For meet-bots.example.com, the issuer is google.com/a/meet-bots.example.com.



8. Return to Manage SSO profile assignments and assign the Legacy SSO profile to the dedicated bot Workspace.





9. Use the Users view to check the effective assignment for each bot user. Confirm that an inherited organizational-unit or group setting has not selected another profile or None.

See Google's SSO instructions for profile and assignment controls. Organizational-unit scoping is not a substitute for a dedicated Workspace.

Step 2. Create a Google Login Group in Recall

A Google Login Group holds the accounts Recall can select and controls when bots sign in. Recall selects an active Login from the group for each bot; adding accounts helps distribute concurrent sign-ins.

Use the same Recall workspace and region for the group, Logins, and bots. Group IDs cannot be used across Recall workspaces.

Open API Explorer → Google Logins in your regional dashboard:

us-east-1 · eu-central-1 · us-west-2 · ap-northeast-1

Select the groups view, click Create Group, and give it a name. Set login_mode to always so the setup test attempts sign-in. Save the group's id.

For conditional sign-in, see Which login mode should I use?

Step 3. Add Google Logins to the group

A Google Login connects an existing Google account to the group. Creating Recall resources does not create Google users or configure Workspace SSO.

In API Explorer → Google Logins, open the Logins tab and select Create Login.

Enter the bot account's email, select the Login Group from step 2, upload the private key and certificate from step 1, and click Create.

Check Login Status before testing. If preparation fails, review the account and SSO settings, then click Retry after correcting any issues. See Login statuses for other states.

Step 4. Send a test bot and verify its identity

Either create a meeting that requires participants to be signed-in or create a new Google Login Goup with Login Mode set to always.

Then send a request via the Create Bot endpoint with your meeting URL and group ID. Replace the variables and meeting URL below with your own values:

RECALL_REGION="us-west-2"
RECALL_API_KEY="YOUR_RECALL_API_KEY"
GOOGLE_LOGIN_GROUP_ID="YOUR_GOOGLE_LOGIN_GROUP_ID"

curl --request POST \
  --url "https://${RECALL_REGION}.recall.ai/api/v1/bot/" \
  --header "Authorization: Token ${RECALL_API_KEY}" \
  --header "Content-Type: application/json" \
  --data "{
    \"meeting_url\": \"https://meet.google.com/YOUR-MEETING-CODE\",
    \"google_meet\": {
      \"google_login_group_id\": \"${GOOGLE_LOGIN_GROUP_ID}\"
    }
  }"

Pass the intended group ID explicitly in every bot-creation path.

To verify the test:

1. Save the bot ID and check its status changes to see if it failed to join the call.
2. Confirm that the actual request uses the intended group, Recall workspace, and region.
3. Compare the bot's name and profile picture with an account in the selected Login Group. A group with multiple accounts can select a different account for each bot.

Customer-defined metadata and Google warnings are not proof of authentication. If the test fails, start with the sign-in error checks.

Troubleshooting

Login status and retries

Creating a Login confirms only that the resource exists. Active enables selection and background sign-in preparation. Login Status describes stored preparation state, not a live check with Google.

After correcting settings or credentials, ensure Active is enabled, click Retry on the affected Login, check its status, and send a fresh test bot. Retry resets stored sign-in preparation; it does not change Google's settings or confirm successful authentication.

Sign-in errors

Read the bot's status changes and final status: a retryable sign-in error can be followed by another attempt. The checks below are starting points, not confirmed causes or guaranteed fixes.

See Bot Sub Codes for the complete reference.

FAQ

How do I access the bot's Google Workspace Admin dashboard once Legacy SSO is enabled?

You can login using the super admin accounts email and password as this is always an accessible option with Legacy SSO enabled.

How do I access a bot's Google account?

If Google Admin redirects you to Recall's sign-in URL and returns not_authenticated, use the SSO login tool to establish a Google session first. Use an account that already has Google Admin permissions, not the bot's non-admin account.

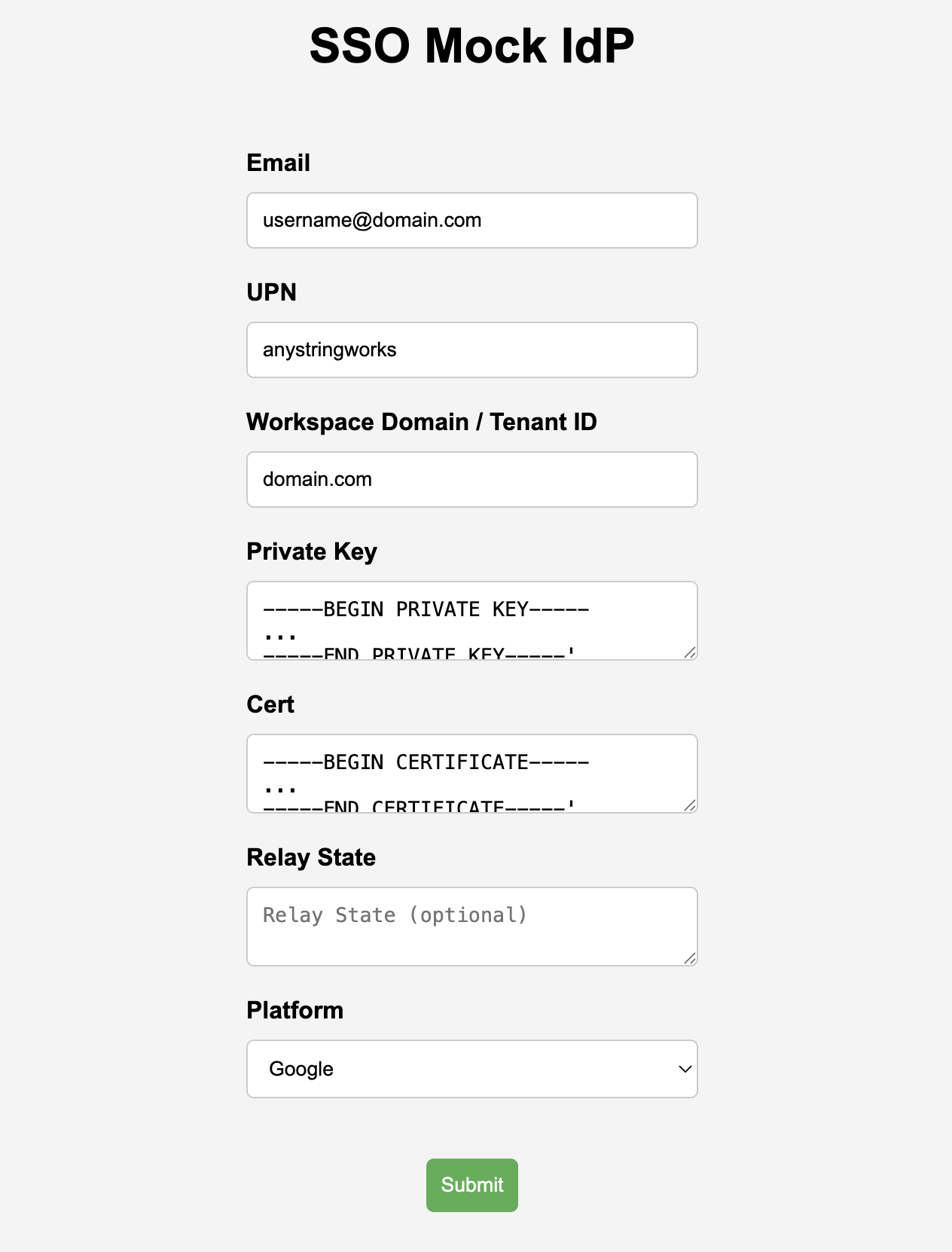

1. Open an incognito window and visit the SSO login tool.
2. Enter the admin account's email in Email, and the Workspace's primary domain in Workspace Domain / Tenant ID. (Note: UPN and Relay State are optional, UPN must be non-empty).
3. Paste the complete SSO Private Key and Cert configured for that Workspace, select Google as the platform, and click Submit. Complete any required Google verification.

4. Open the Google profile in a new tab in the same incognito window.

This signs you in; it does not change your Workspace's SSO settings or grant administrator privileges. Do not share screenshots of the form containing your private key.

Can bots sign in as users from an end user's existing company Google Workspace?

No. This setup requires administrative control of a dedicated bot Workspace and changes to its SSO configuration; it does not connect a customer's existing Google account through individual consent.

Do not apply this configuration to a customer's company Google Workspace: it can disrupt employees' access to Google services. A customer-owned, separate Workspace dedicated to bots must meet the same requirements in this guide.

Which login mode should I use?

• only_if_required is recommended and only signs in when Google requires authentication when a bot joins a meeting. Otherwise, the bot may join unsigned.
• always attempts sign-in for every Google Meet meeting using this Google Login Group. Use it for setup tests and when bots should use a Google account identity in every meeting.

Why does Google warn that the bot may not be who it claims to be?

Google can show this identity warning (This person isn't signed in with a Google Account. They might not be who they claim to be) when a bot joins without signing in.

You can implement signed-in Google Meet bots to make the bot sign-in for meetings instead of joining as an anonymous participant.

This is different from Google's potential-risk classification, which can still appear for a signed-in bot.

How do I change a signed-in bot's name or profile picture?

Update the Google account's display name or profile picture. Google Meet uses that account's identity and ignores Create Bot's bot_name. If the Login Group contains multiple accounts, update each account that should use the same identity.

How do I add more accounts?

You can add more accounts to an existing login group or create a new login group. For each additional account:

1. Create a standard user in the dedicated Google Workspace.
2. Confirm it is active, complete any required Google setup or verification, and check its effective Legacy SSO assignment.
3. Create a separate Recall Google Login with the user's email, group ID, and Workspace's matching SSO key and certificate.
4. Check each Login's status and test the account. A successful sign-in tests only the selected account, not every account in the group.

For testing, you can use different names/profile photos to verify whether the account works.

How many Google accounts do I need?

One Google Login can support 30 concurrent bot sign-ins per Google account (e.g., you can have 30 bots actively in calls sharing the same signed-in account at the same time). This is a platform-level limitation set by Google. We recommend starting with two logins for most developers, where the accounts are not admin users in the Google Workspace.

If a bot reports google_meet_login_not_available, check the intended group's enabled Logins and available account capacity.

Why did a previously working account stop signing in?

Check for changes since the last successful test:

• Was the Google account suspended, disabled, renamed, or given administrator privileges?
• Are you able to sign-in to the bot's Google account?
• Did its effective SSO assignment change, including an inherited organizational-unit or group override?
• Did the primary domain or Recall sso_v2_workspace_domain change?
• Was a new certificate uploaded to Google without updating the matching Recall credentials?
• Did the bot request, Recall workspace, group ID, or group login mode change?

If you're still encountering issues after working through this list, reach out to [email protected] for additional help troubleshooting.

Why does a signed-in bot still show a Google warning?

Signing in removes the standard unsigned-participant warning, not necessarily Google's separate potential-risk classification. Signed-in bots will not resolve this warning.

Please reach out to [email protected].

Can I verify bot sign-ins in Google Admin?

Two views can help:

• Users → Last sign in is approximate and can lag by several hours to three days.
• Reporting → Audit and investigation → User log events lets authorized administrators filter by user and time, login type, and event status.

Neither is a complete per-bot record: Google can combine session events and omit some non-browser sign-ins. Legacy SAML can show a failed Google Password event followed by a successful SAML event. Inspect the sequence before concluding that sign-in failed.

See Last sign-in information and User log events.

How do I get the bot to bypass the Google Meet waiting room?

In order for a bot to bypass the waiting room:

1. The bot must be signed in to a Google account (following the guide above)
2. The email of the account the bot is signed into must be on the underlying calendar event

Does Recall support Organizational Unit (OU) scoped SSO in an existing Google Workspace?

No - bots requires a separate, dedicated paid Google Workspace for signed-in bots. While Google Workspace supports OU-scoped SSO for Legacy SSO, the bots do not support it at this time.
